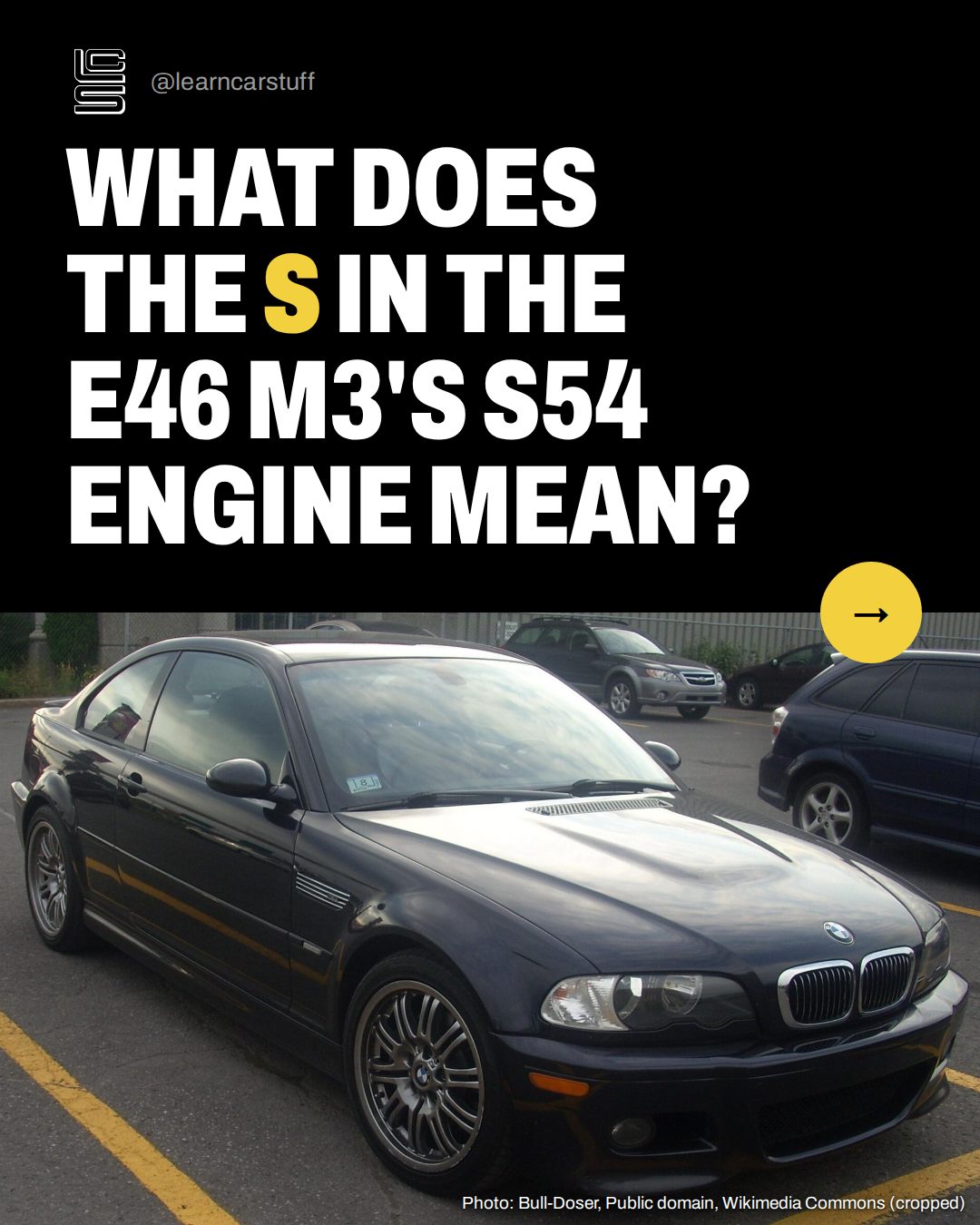

What does the S in the E46 M3's S54 engine mean?

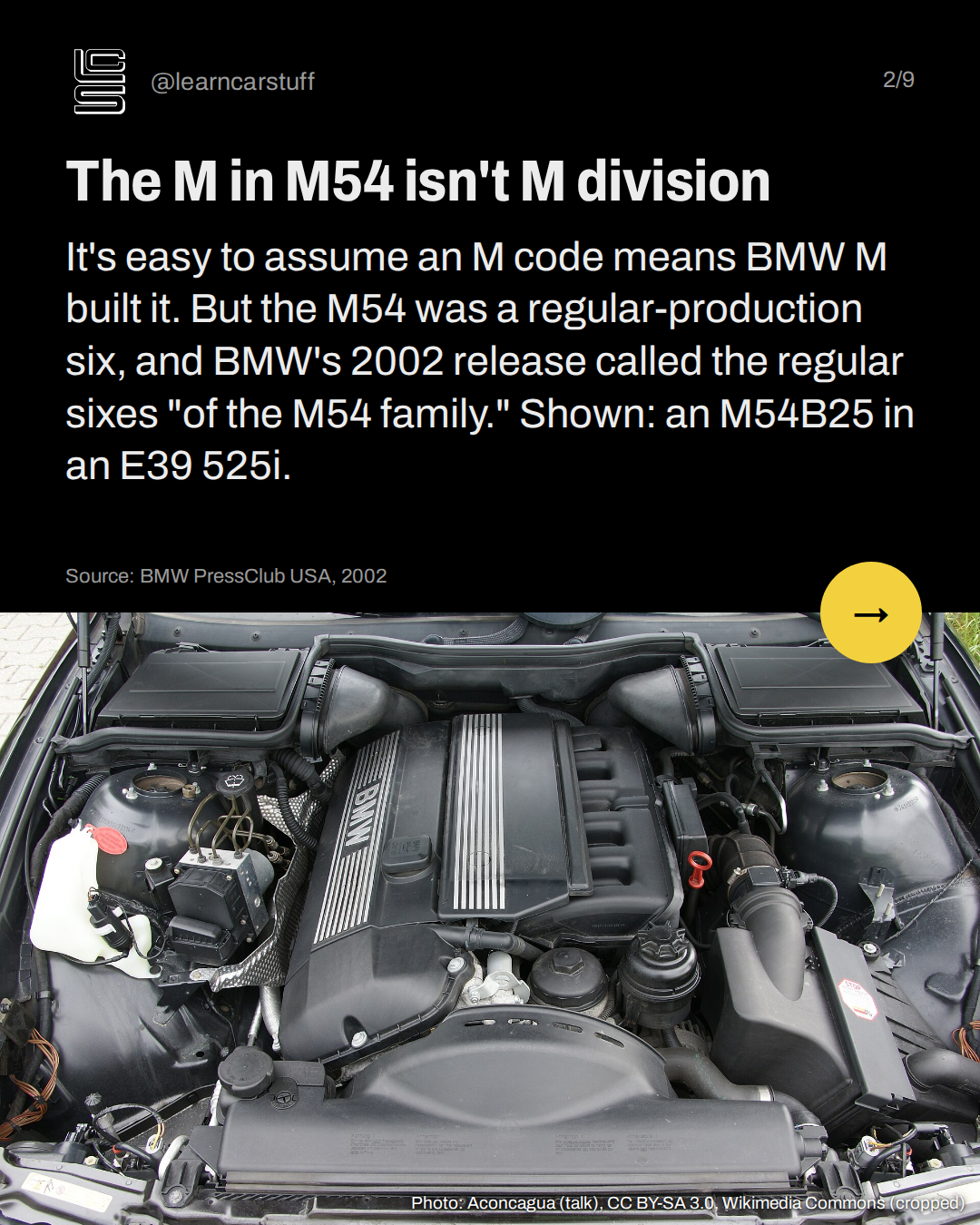

The M in M54 isn't M division
It's easy to assume an M code means BMW M built it. But the M54 was a regular-production six, and BMW's 2002 release called the regular sixes "of the M54 family." Shown: an M54B25 in an E39 525i.
Source: BMW PressClub USA, 2002

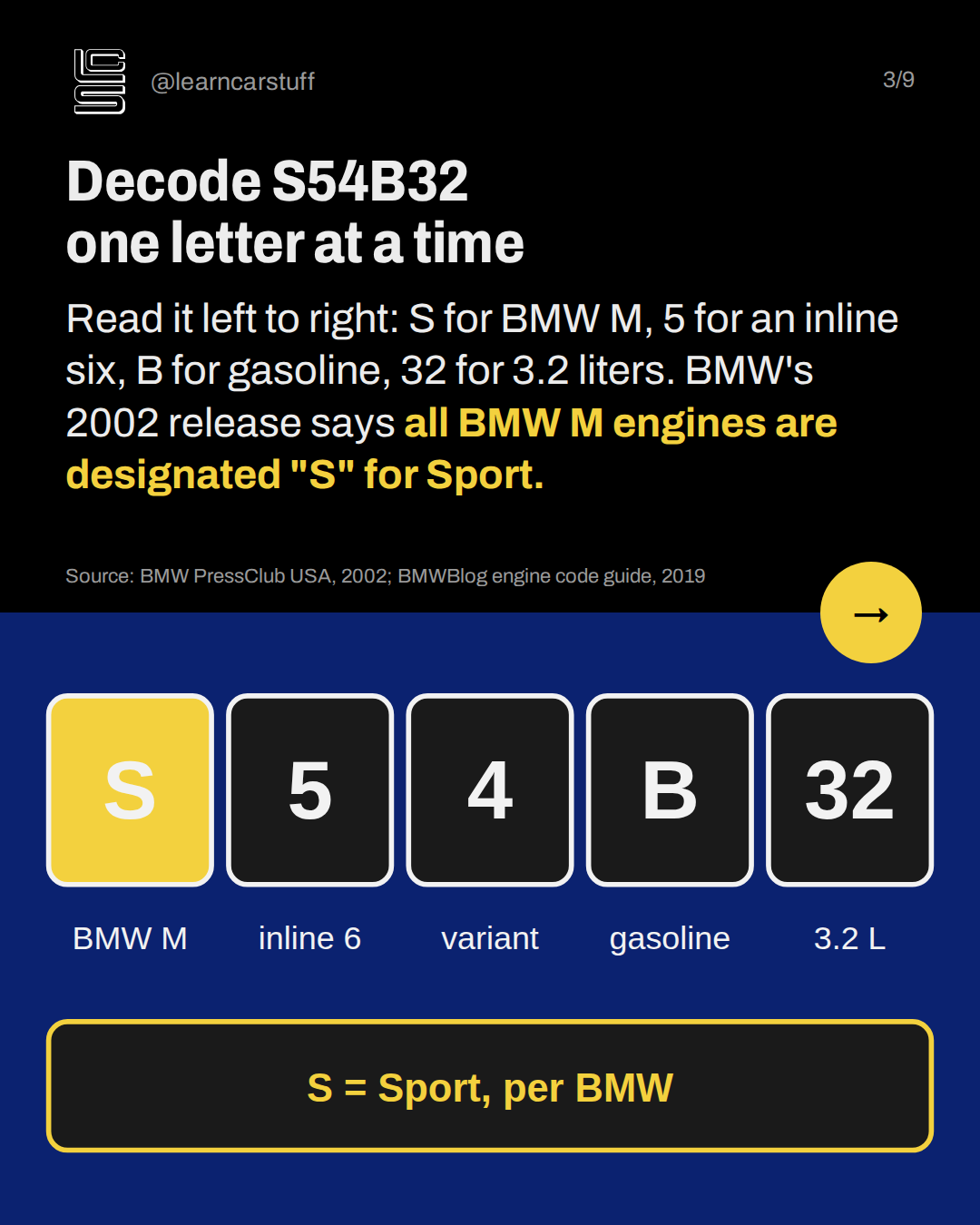

Decode S54B32 one letter at a time
Read it left to right: S for BMW M, 5 for an inline six, B for gasoline, 32 for 3.2 liters. BMW's 2002 release says all BMW M engines are designated "S" for Sport.
Source: BMW PressClub USA, 2002; BMWBlog engine code guide, 2019

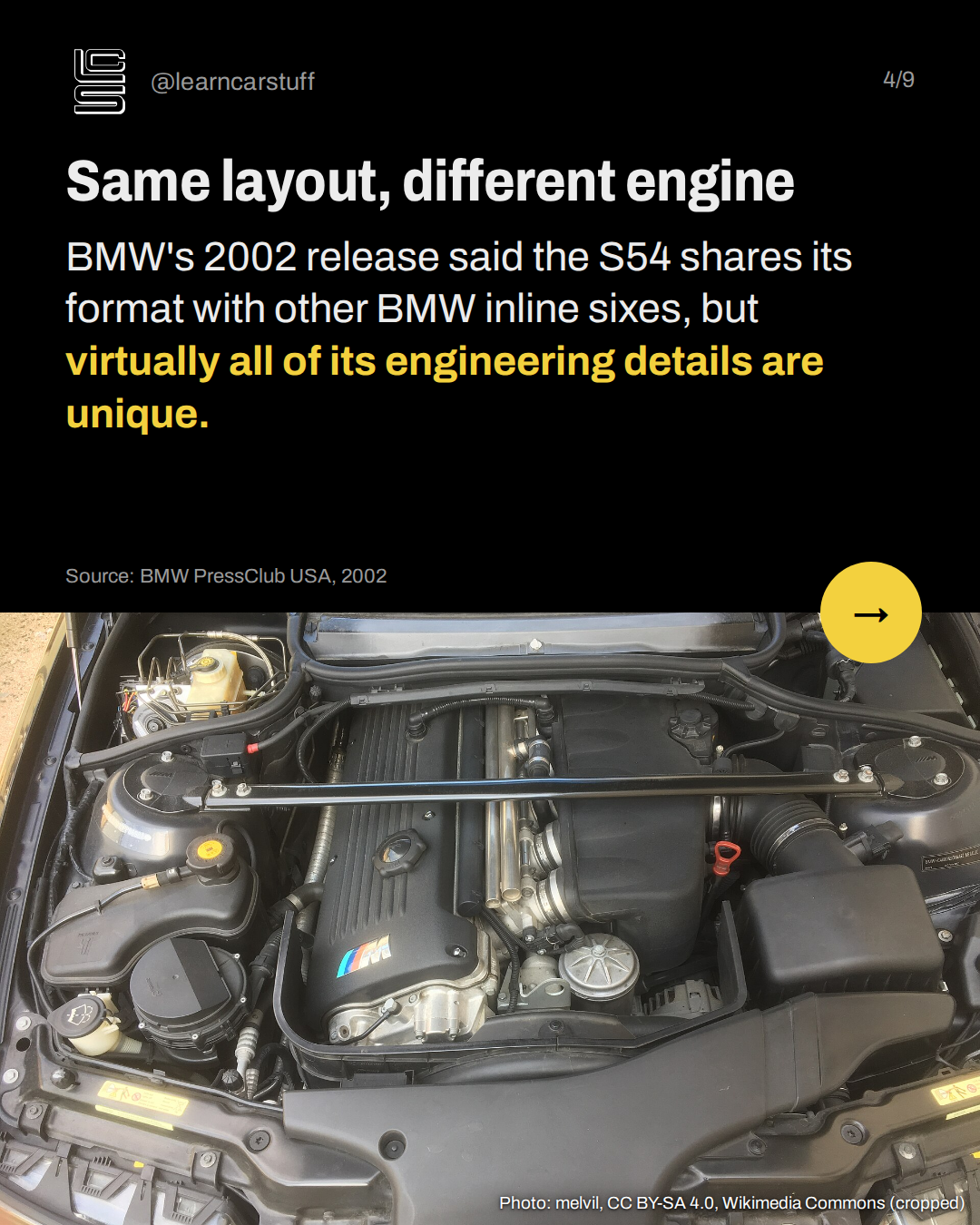

Same layout, different engine
BMW's 2002 release said the S54 shares its format with other BMW inline sixes, but virtually all of its engineering details are unique.
Source: BMW PressClub USA, 2002

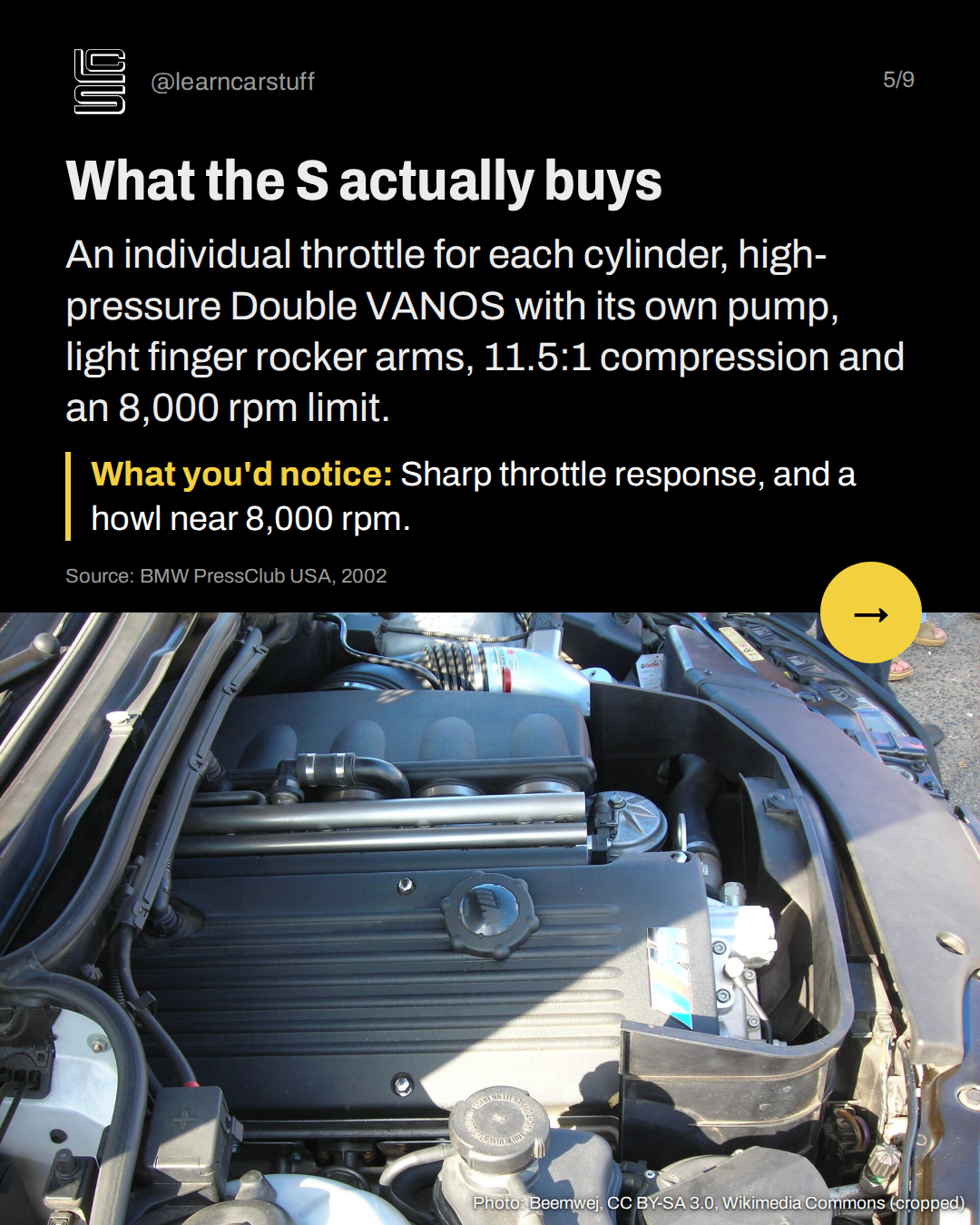

What the S actually buys
An individual throttle for each cylinder, high-pressure Double VANOS with its own pump, light finger rocker arms, 11.5:1 compression and an 8,000 rpm limit.
What you'd notice: Sharp throttle response, and a howl near 8,000 rpm.
Source: BMW PressClub USA, 2002
A cast-iron surprise
BMW's regular sixes of 2002 had aluminum blocks. The S54 got cast iron for compactness and strength. At 8,000 rpm its pistons average about 24 m/s; BMW put 2002 F1 engines near 25.
Source: BMW PressClub USA, 2002

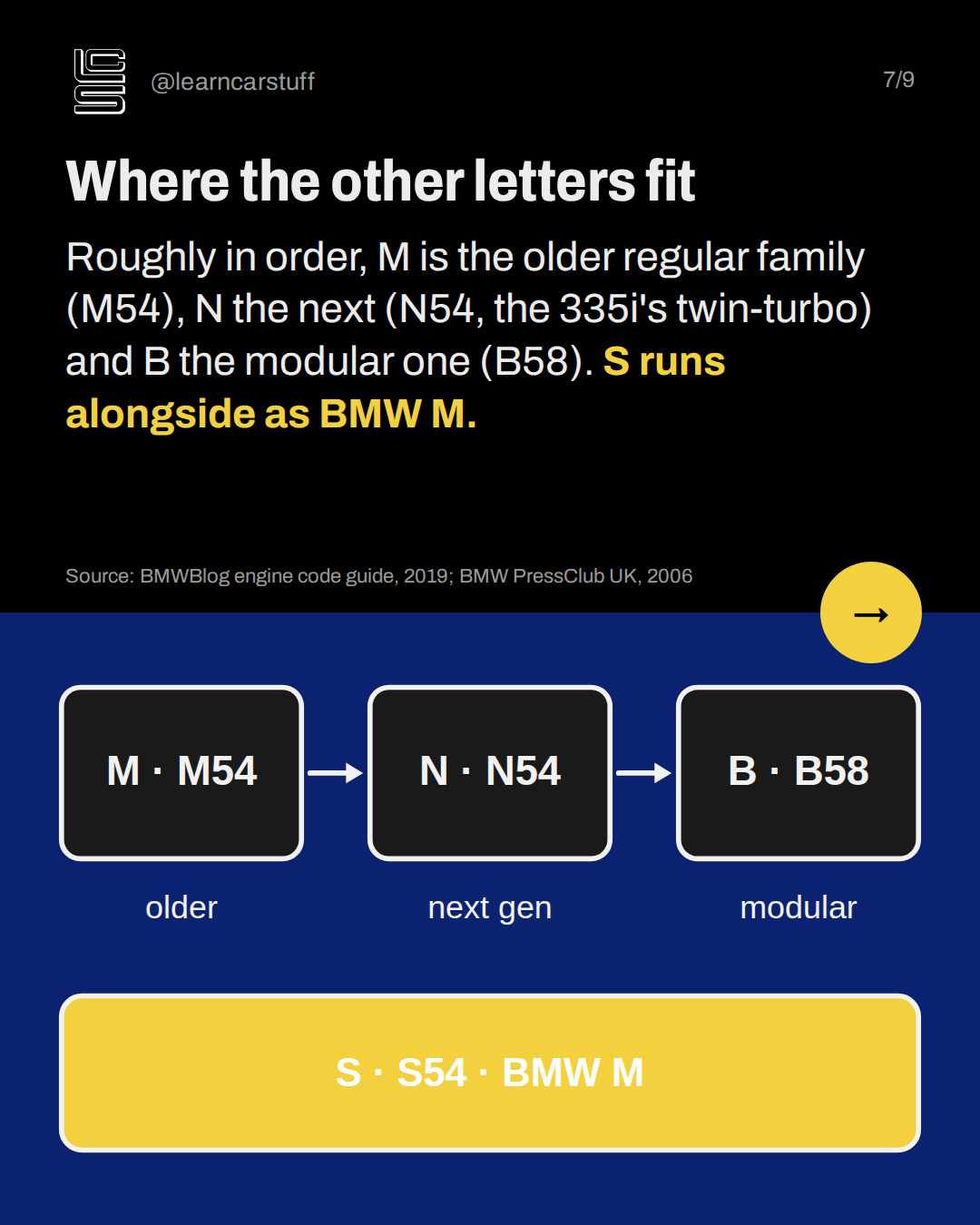

Where the other letters fit
Roughly in order, M is the older regular family (M54), N the next (N54, the 335i's twin-turbo) and B the modular one (B58). S runs alongside as BMW M.
Source: BMWBlog engine code guide, 2019; BMW PressClub UK, 2006

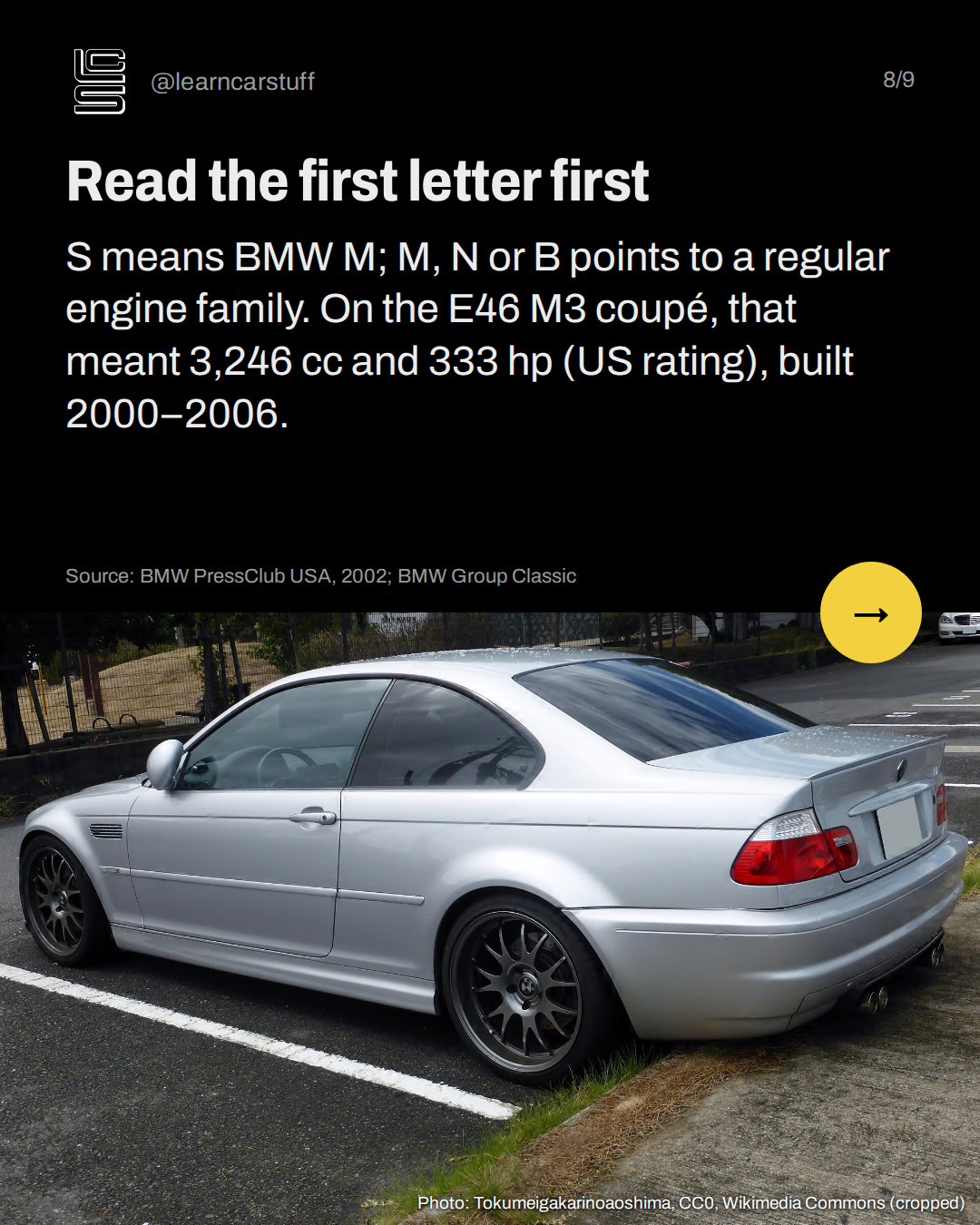

Read the first letter first
S means BMW M; M, N or B points to a regular engine family. On the E46 M3 coupé, that meant 3,246 cc and 333 hp (US rating), built 2000–2006.
Source: BMW PressClub USA, 2002; BMW Group Classic
Sources and assumptions
- BMW Group PressClub USA: 'BMW M3 for 2003: Extensive detail refinements for two spectacular sports cars' (press release, 1 Nov 2002): Verbatim: 'All BMW M engines are designated "S" for Sport. Current regular-production BMW 6-cylinders are of the M54 family.' Also supports: S54 'shares its format with other BMW inline 6-cylinder engines. Virtually all of its engineering details, however, are unique'; other BMW sixes have an aluminum block with cast-iron liners while the S54 has a cast-iron block, for compactness and strength; 333 hp; bore x stroke 87.0 x 91.0 mm, 3246 cc; 8000 rpm limit, peak power at 7900 rpm; 24 m/s piston speed vs about 25 m/s for current F1 engines; individual throttle for each cylinder ('a BMW M tradition'); high-pressure Double VANOS with its own radial-piston pump, up to 120 bar; finger-type rocker arms, effective valvetrain mass 30% lower; 11.5:1 compression; one-piece aluminum head; engineers Siegfried Friedmann (M3 Project Director), Herbert Vögele (engine development, BMW M) (checked 2026-10-08)
- BMW Group Classic: BMW M3 Coupé (E46) model page: Engine code S54B32; 3246 cc; 252 kW at 7,900 rpm (shown on the page as '343 hp', which is the metric 343 PS figure); production 07/2000 to 03/2006; 54,750 built (checked 2026-10-08)
- BMWBlog: 'Guide: BMW engine codes naming convention' (Horatiu Boeriu, 18 Nov 2019): Prefixes: M = standard engines (to about 2005), N = standard engines (about 2006–2016), B = standard engines (about 2016 onward), S = BMW M engines, P = BMW Motorsport racing engines. Code structure (example M52B20): first digit = cylinder layout (5 = inline six), second = variant, B = gasoline/longitudinal, then displacement (20 = 2.0 L). S54B32 follows the older M-style naming; S55 follows the newer B-style naming (checked 2026-10-08)
- BMW Group PressClub UK: 'September 2006: a new BMW for every day of the month' (23 Aug 2006): The 335i Coupé's 3.0-litre twin-turbo is 'the first ever twin-turbo petrol-powered engine in a production BMW'. The release does not print the code N54; that code comes from BMWBlog/the engine-code convention (checked 2026-10-08)
- BMW Group PressClub USA: 'BMW TwinPower Turbo technology once again takes a spot on 2016 Wards 10 Best Engines list': BMW names the B58: 3.0 L, direct injection, twin-scroll turbocharging, all-aluminum construction, Double-VANOS and Valvetronic (checked 2026-10-08)
Assumptions:
- The E46 M3's US rating is 333 hp (SAE), per BMW USA's 2002 release. BMW Group Classic's '343 hp (252 kW)' is the European metric figure (343 PS). Slides should say '333 hp (US)' or '252 kW / 343 PS (Europe)', never mix them.
- Prefix date ranges (M to about 2005, N about 2006–2016, B from about 2015–16) are approximate. They come from BMWBlog, not BMW, and engines overlapped in the changeover years, so slides should say 'roughly' or give example engines rather than hard years.
- The digit meanings (5 = inline six, B = gasoline longitudinal, 32 = 3.2 L) come from BMWBlog's guide, not a BMW document. They are consistent with BMW's own figures (S54B32 = 3,246 cc inline six).
- The piston-speed number is BMW's own (24 m/s at 8,000 rpm). The recomputation matches: 2 x 0.091 m x 8000/60 = 24.3 m/s.
- The 'regular sixes had aluminum blocks' comparison is BMW's 2002 statement about its then-current sixes (the M54 family). It is not a claim about all BMW sixes ever.
- The M54 photo is an M54B25 in an E39 525i, not an E46. The slide must say it shows the regular M54 family, not a 330i.
Photos:
- Photo: Bull-Doser, Public domain, Wikimedia Commons (cropped)
- Photo: Tokumeigakarinoaoshima, CC0, Wikimedia Commons (cropped)
- Photo: melvil, CC BY-SA 4.0, Wikimedia Commons (cropped)
- Photo: Beemwej, CC BY-SA 3.0, Wikimedia Commons (cropped)
- Photo: Aconcagua (talk), CC BY-SA 3.0, Wikimedia Commons (cropped)
The short version
- S means a BMW M engine.
- BMW's own press kit says "Sport."
- M54 was a regular six, not an M engine.
- The S54 shares its layout, not its parts.
