The tiny alignment setting that scrubs your tires sideways every mile

· View on Instagram · View on Facebook

The tiny alignment setting that scrubs your tires sideways every mile

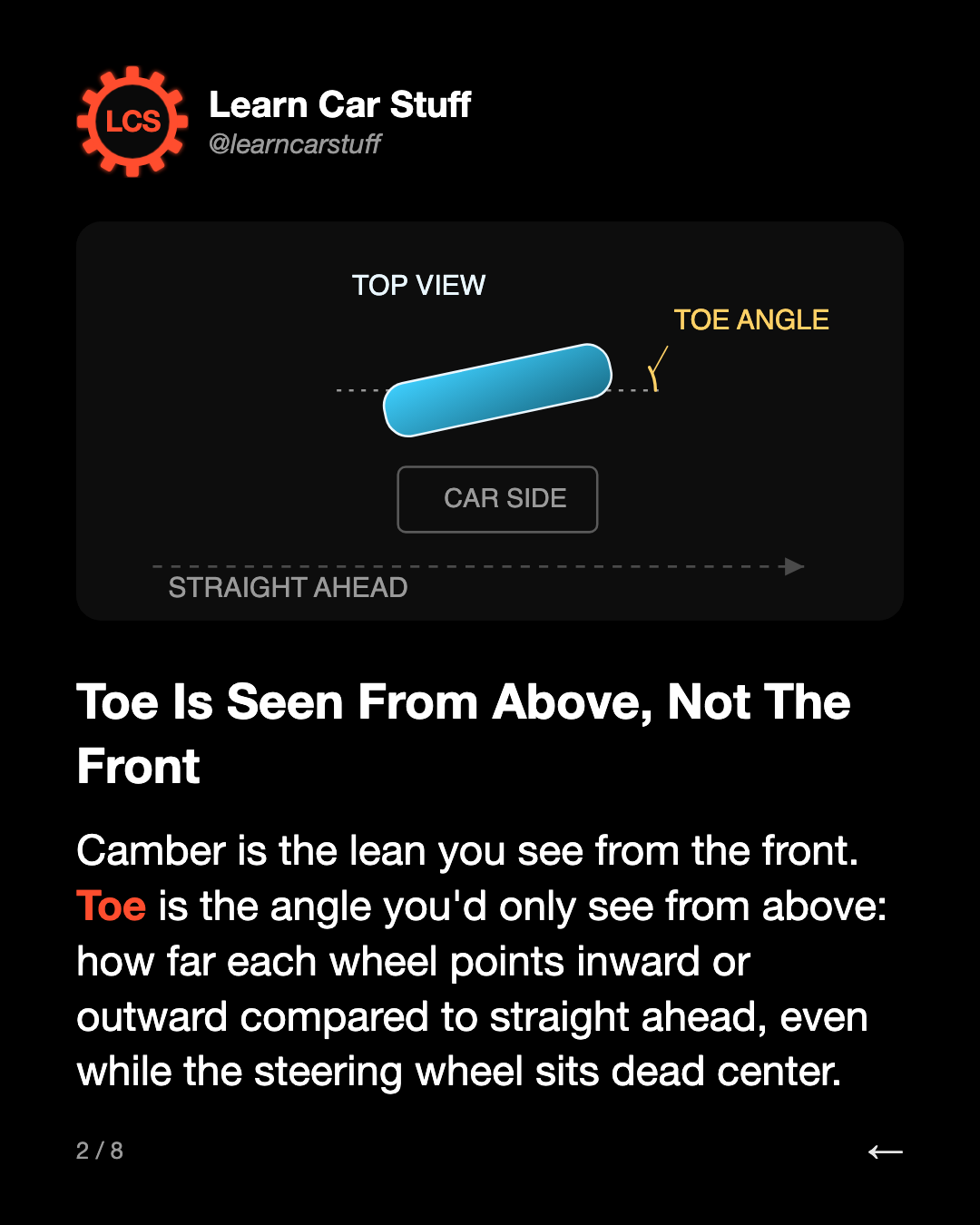

Toe Is Seen From Above, Not The Front. Camber is the lean you see from the front. Toe is the angle you'd only see from above: how far each wheel points inward or outward compared to straight ahead, even while the steering wheel sits dead center.

Toe Is Seen From Above, Not The Front

Camber is the lean you see from the front. Toe is the angle you'd only see from above: how far each wheel points inward or outward compared to straight ahead, even while the steering wheel sits dead center.

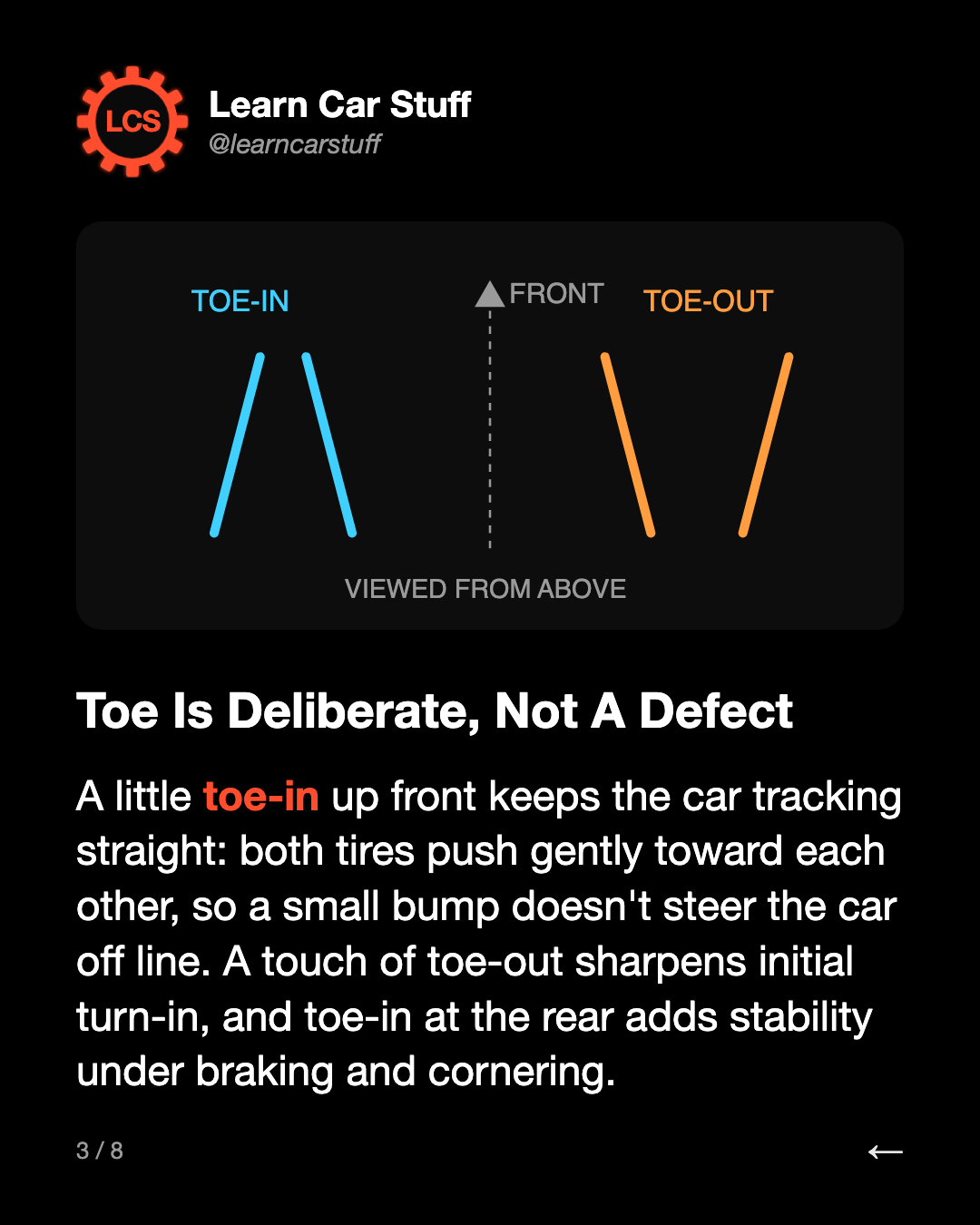

Toe Is Deliberate, Not A Defect. A little toe-in up front keeps the car tracking straight: both tires push gently toward each other, so a small bump doesn't steer the car off line. A touch of toe-out sharpens initial turn-in, and toe-in at the rear adds stability under braking and cornering.

Toe Is Deliberate, Not A Defect

A little toe-in up front keeps the car tracking straight: both tires push gently toward each other, so a small bump doesn't steer the car off line. A touch of toe-out sharpens initial turn-in, and toe-in at the rear adds stability under braking and cornering.

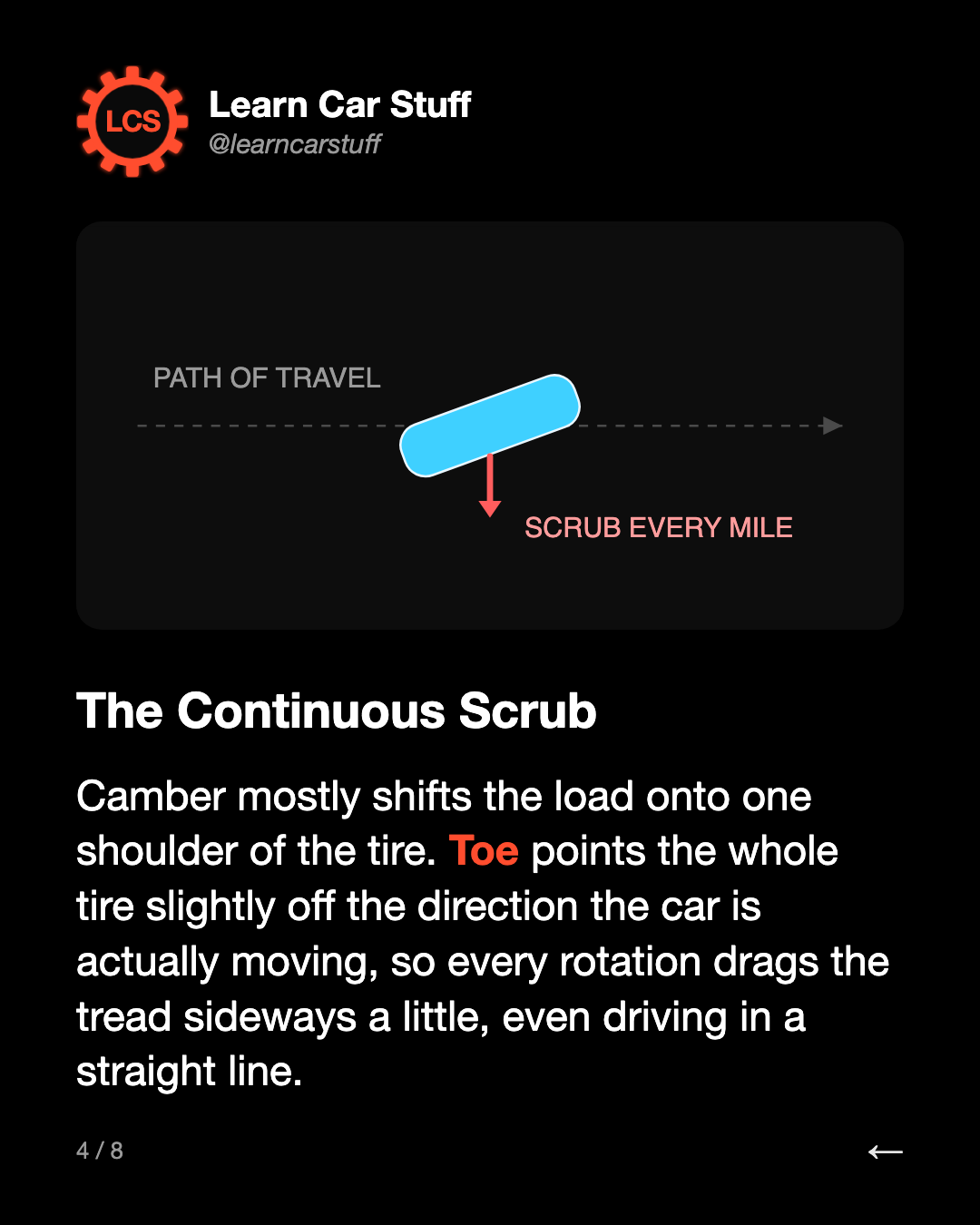

The Continuous Scrub. Camber mostly shifts the load onto one shoulder of the tire. Toe points the whole tire slightly off the direction the car is actually moving, so every rotation drags the tread sideways a little, even driving in a straight line.

The Continuous Scrub

Camber mostly shifts the load onto one shoulder of the tire. Toe points the whole tire slightly off the direction the car is actually moving, so every rotation drags the tread sideways a little, even driving in a straight line.

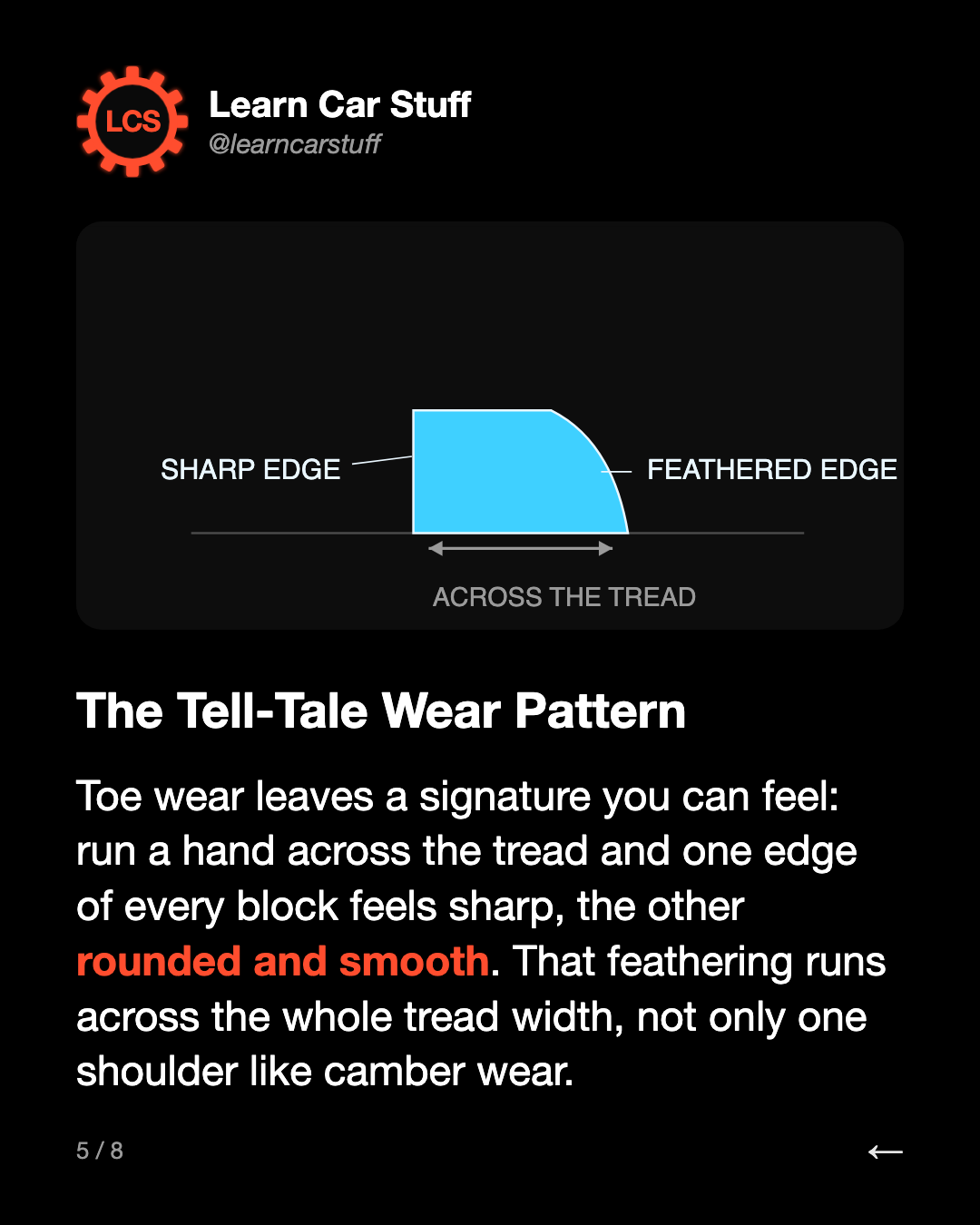

The Tell-Tale Wear Pattern. Toe wear leaves a signature you can feel: run a hand across the tread and one edge of every block feels sharp, the other rounded and smooth. That feathering runs across the whole tread width, not only one shoulder like camber wear.

The Tell-Tale Wear Pattern

Toe wear leaves a signature you can feel: run a hand across the tread and one edge of every block feels sharp, the other rounded and smooth. That feathering runs across the whole tread width, not only one shoulder like camber wear.

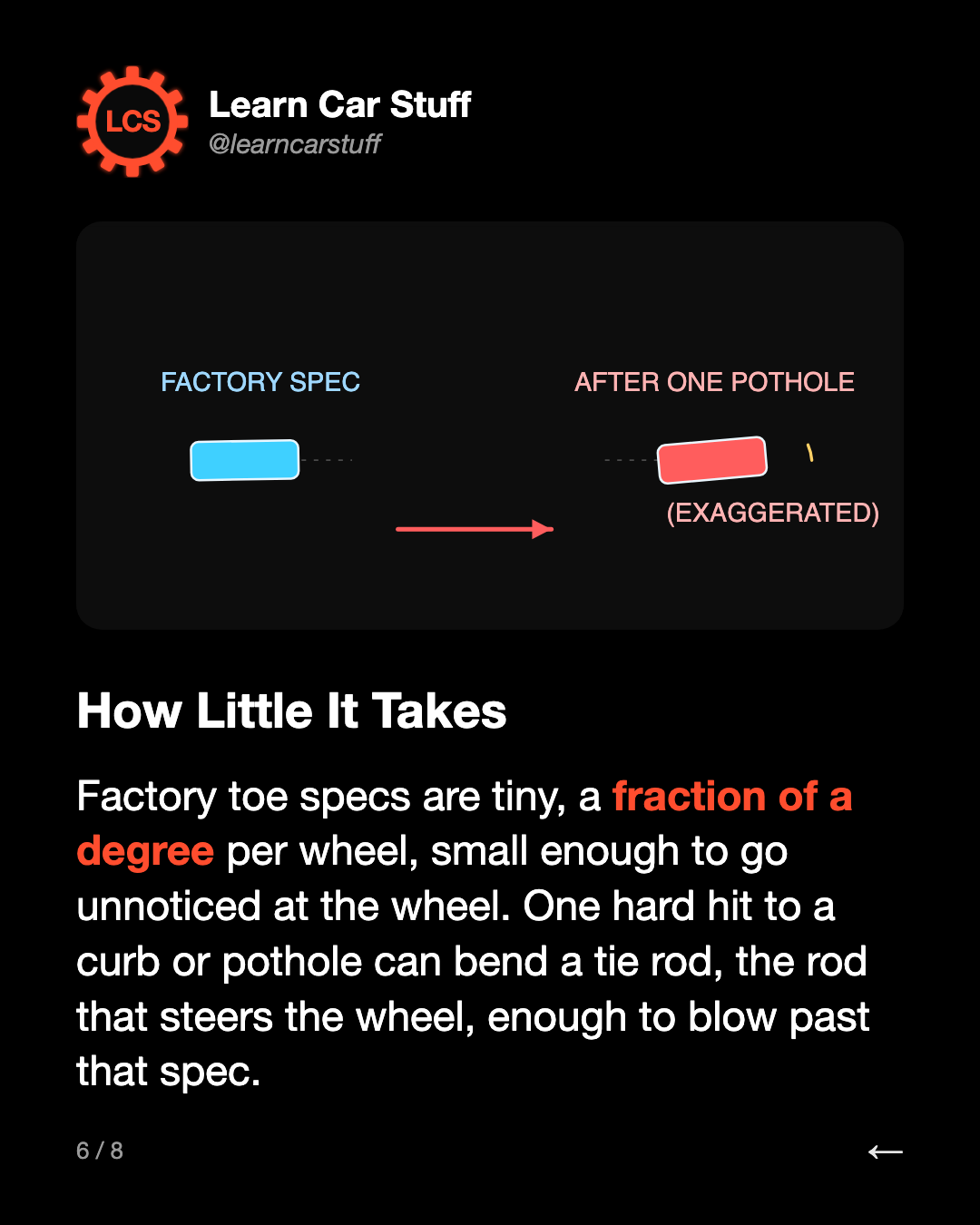

How Little It Takes. Factory toe specs are tiny, a fraction of a degree per wheel, small enough to go unnoticed at the wheel. One hard hit to a curb or pothole can bend a tie rod, the rod that steers the wheel, enough to blow past that spec.

How Little It Takes

Factory toe specs are tiny, a fraction of a degree per wheel, small enough to go unnoticed at the wheel. One hard hit to a curb or pothole can bend a tie rod, the rod that steers the wheel, enough to blow past that spec.

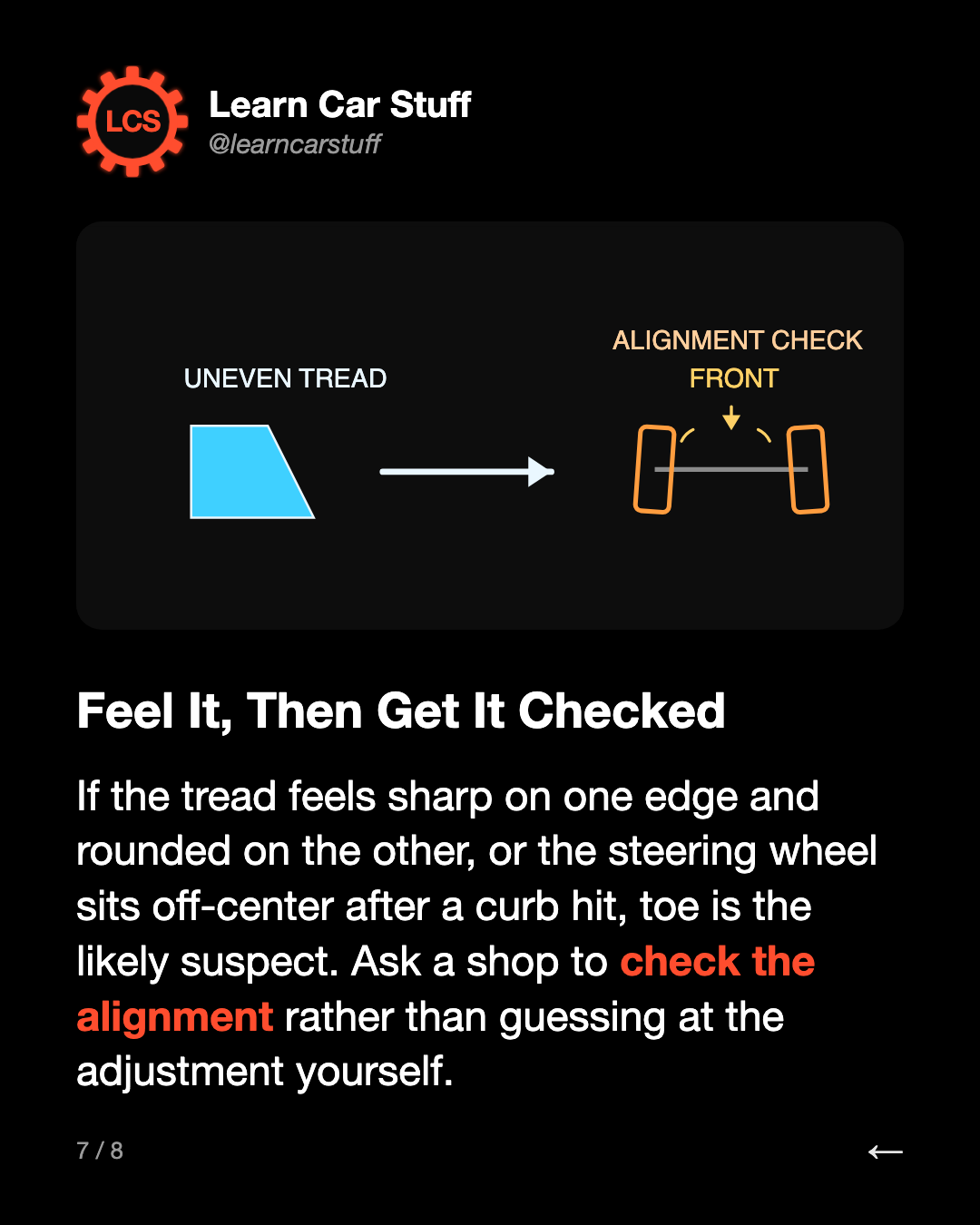

Feel It, Then Get It Checked. If the tread feels sharp on one edge and rounded on the other, or the steering wheel sits off-center after a curb hit, toe is the likely suspect. Ask a shop to check the alignment rather than guessing at the adjustment yourself.

Feel It, Then Get It Checked

If the tread feels sharp on one edge and rounded on the other, or the steering wheel sits off-center after a curb hit, toe is the likely suspect. Ask a shop to check the alignment rather than guessing at the adjustment yourself.
